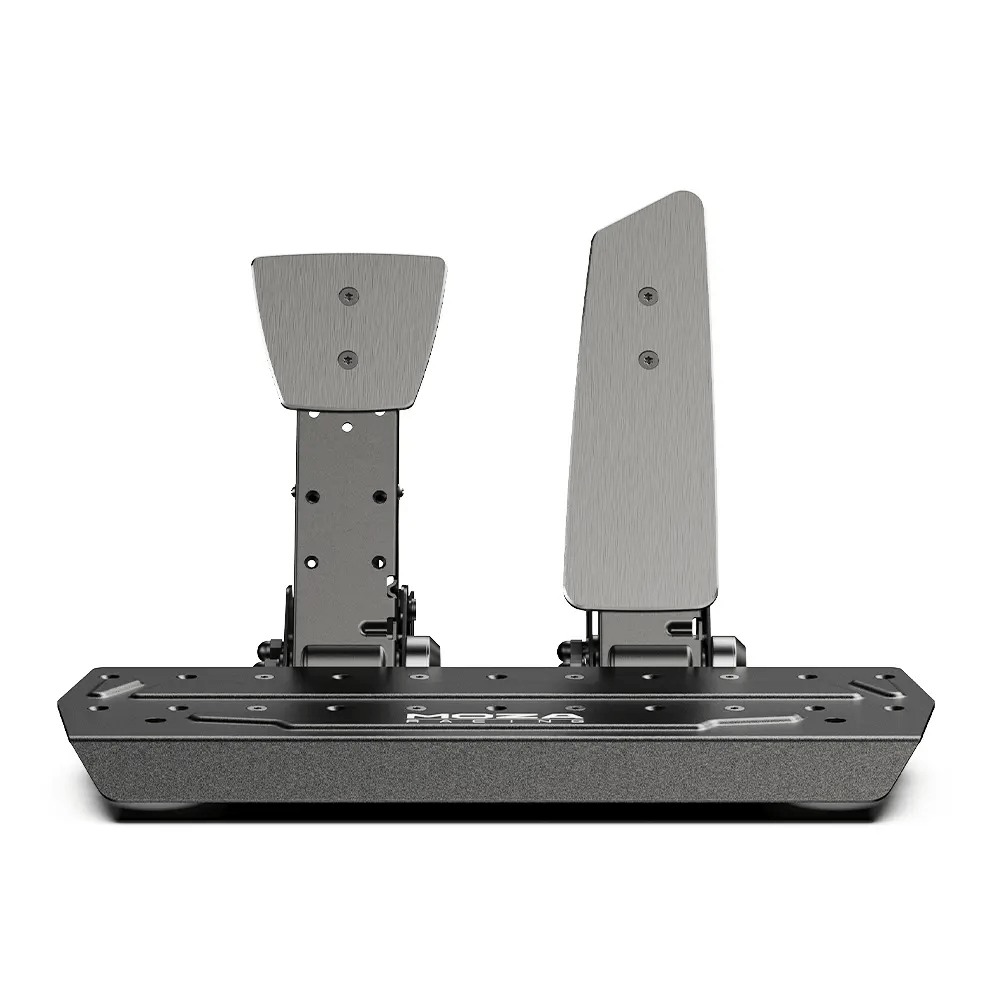

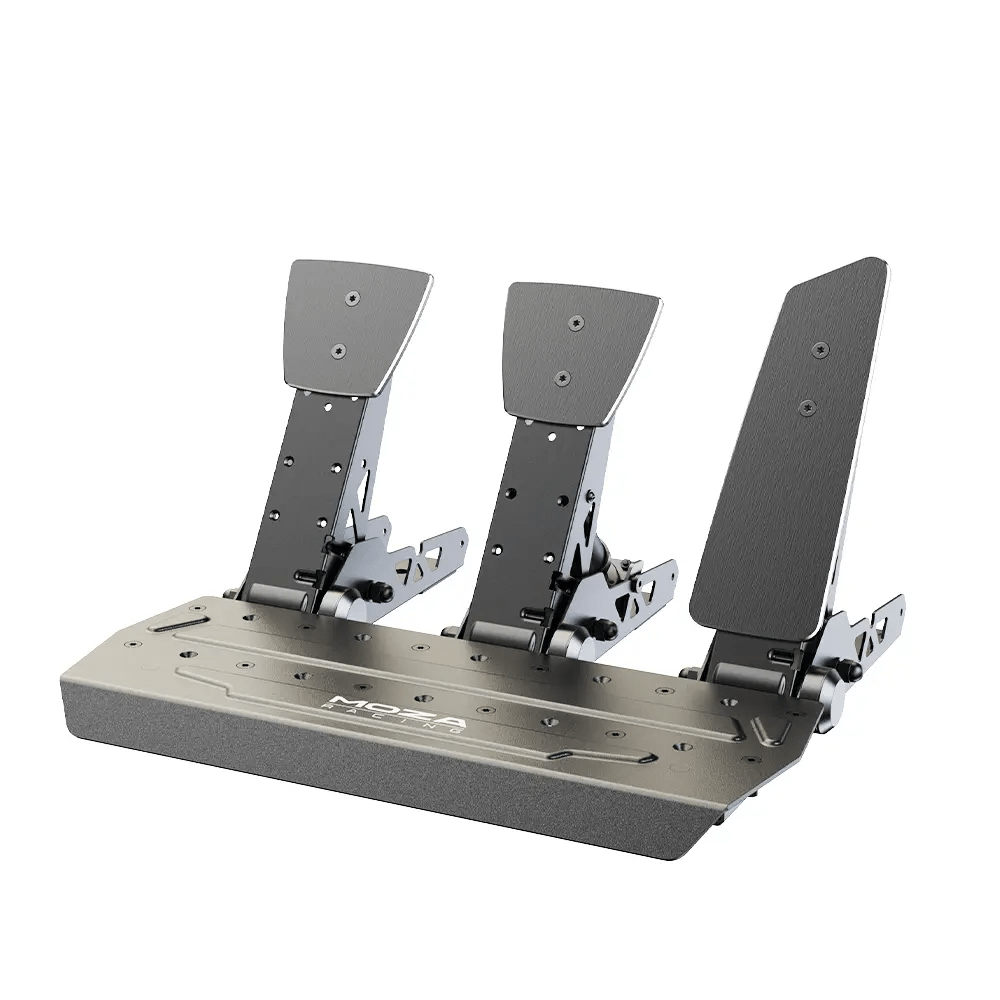

MOZA SR-P Pedal

Crafted with high-strength steel and featuring a high-precision pressure sensor capable of detecting up to 100KG, these reliable pedals ensure solid responsive inputs. A 16-bit high-precision magnetic encoder captures every movement with exceptional detail. Customize your setup with adjustable pedal spacing for optimal comfort and directly connect it to your PC via USB for seamless integration. Experience smooth and controlled braking with the combined braking spring and damping block.

• Made with High-strength Steel: The pedal is machined with high-strength steel, giving superior quality and endurance.
• Floor Mounted Organ Type Accelerator Pedal: The organ-type accelerator pedal allows the driver’s foot and pedal to follow the same trajectory. Which makes throttle control easier and more accurate.
• High Precision Pressure Sensor with a Maximum Range of 75kg: The MOZA SR-P pedals utilize pressure sensors with a maximum range of 75KG. The pressure sensors will detect the braking pedal stopping pressure . A user can obtain the ideal braking force by controlling the amount of pressure applied on the braking pedal.
• 16-bit High Precision Magnetic Encoder: The brake, clutch and throttle pedals all use 16-bit precision magnetic encoder with 65536 PPR resolution, a much higher resolution and more stable than a Hall sensor.
• Dual Sensor Fusion Algorithm: The brake utilizes a pressure and angle sensor, allowing fine tuning of braking. The initial stage is dominated by the angle sensor, allowing racers to control the braking angle, the mid and last stage is controlled by the pressure sensor, which makes the pedal easier to control.
• Braking Spring and Damping Block Combined: Utilizing both a braking spring and damping block, racers can enjoy more control in the initial stage pedal travel, with a signature stiffness in the final stages of braking, highly simulating a real foot feel.
• Direct connection with PC through USB port: The MOZA SR-P pedals can connect to PC easily through a USB port and calibrate through the MOZA Pit House software. Compatible with all simracing gears in the market.
• Multiple use scenarios: The anti-slip mat at the bottom prevents the pedal from slipping while being used without professional brackets, while being easily applied to more professional setups.
• Detachable Pedal Design: Pedals can be detached and mounted onto other professional brackets with ease. For hardcore users, the pedals can also be reversed.
• Pedal Output Curve Adjustment: MOZA’s Pit House allows for easy configuration of the pedal output curves according to different needs.

SPECIFICATIONS

USER MANUAL

• Access MOZA Racing manuals & downloads here
