Fanatec Gran Turismo DD Extreme
Immerse yourself in the Extreme.
The most powerful official Direct Drive system for Gran Turismo® combines an advanced Steering Wheel designed in partnership with Polyphony Digital and the 15 Nm ClubSport DD+ Wheel Base to deliver consistent torque performance and detailed force feedback.
$2,699.99 CAD
Description
Immerse yourself in the Extreme.
The most powerful official Direct Drive system for Gran Turismo® combines an advanced Steering Wheel designed in partnership with Polyphony Digital and the 15 Nm ClubSport DD+ Wheel Base to deliver consistent torque performance and detailed force feedback.
Designed for Gran Turismo®.

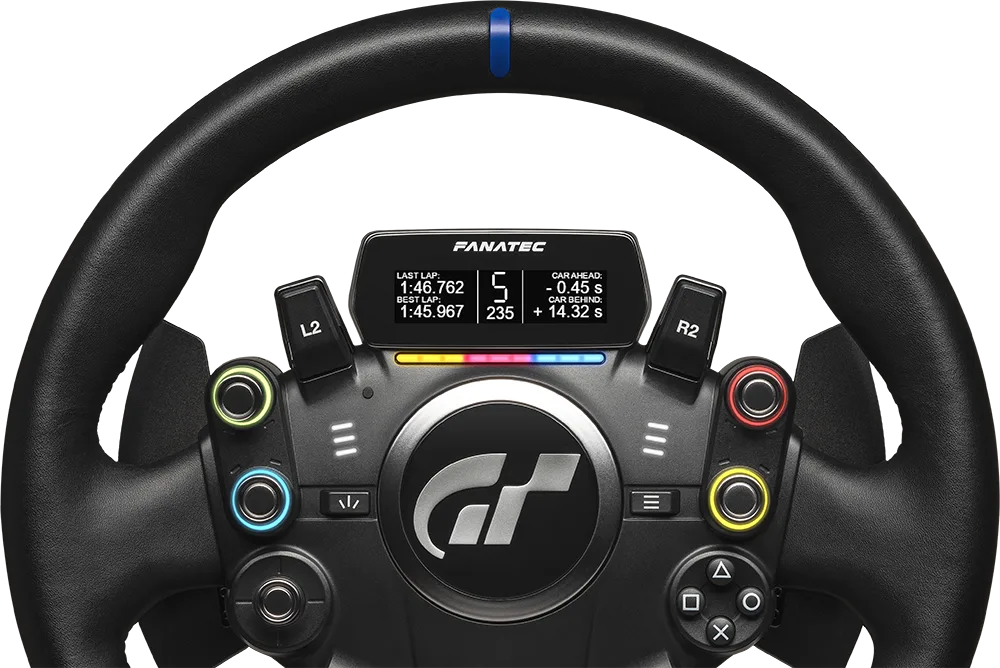

This multi-purpose steering wheel looks and feels realistic thanks to the premium vegan leather rim and 300 mm diameter. It’s the best way to experience Gran Turismo®, with four 5-way directional sticks, RGB LED rings, RGB RevLEDs and FlagLEDs, and a 2.7” OLED display.

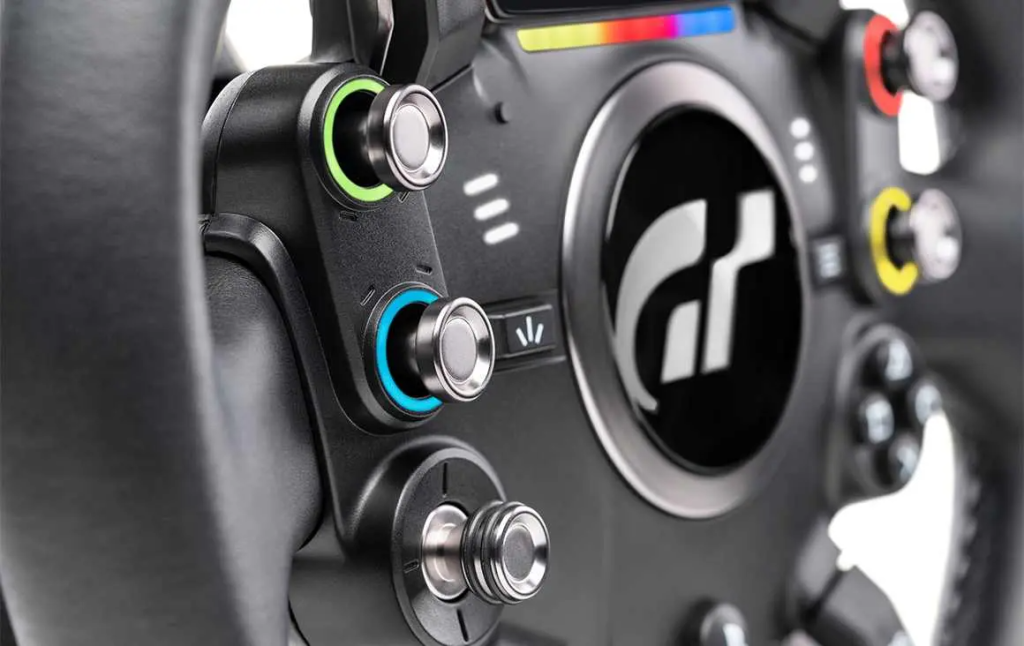

Tactile inputs.
The most advanced Direct Drive system officially licensed for PlayStation®5.
The combination of PlayStation®5 console performance with FANATEC® Direct Drive technology delivers responsive and incredibly dynamic force feedback. Of course, the ClubSport DD+ Wheel Base works on PC too.

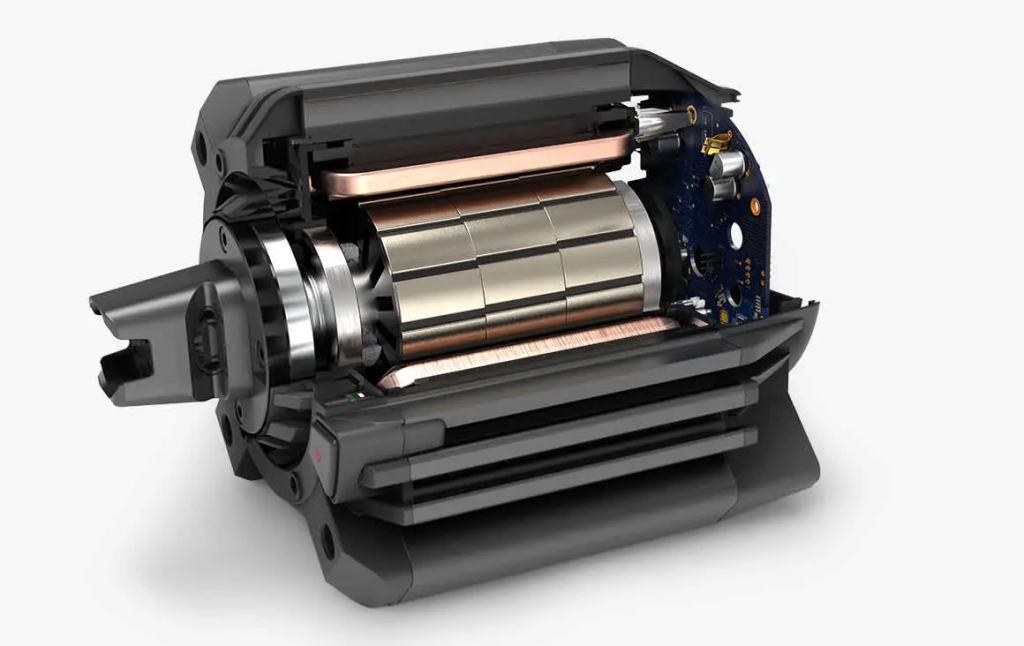

Smooth operator.
By splitting the rotor into offset segments, cogging torque is naturally reduced. Combined with our patented FluxBarrier technology which increases efficiency and smoothness, the result is crystal-clear force feedback information in every driving situation.
Consistent torque, lap after lap.
Engineered to meet strict cooling requirements, the ClubSport DD+ is the most thermally stable Wheel Base in its class, so you can have absolute confidence that the torque output and force feedback will remain consistent, no matter how long you drive.
Lightning fast acceleration.
The speed of the ClubSport DD+ servo motor allows us to fine-tune its behaviour with more accuracy than any previous Fanatec Wheel Base. This means your steering wheel can feel very active, clearly communicating the smallest details, while also feeling perfectly stable, and resistant to unwanted oscillation.
FullForce: Force Feedback 2.0 for Direct Drive.
The existing force feedback protocol was designed for gear and belt-driven devices – the only hardware available at the time. FullForce is a new force feedback protocol tailored specifically for FANATEC® Direct Drive. Leveraging the instantaneous response and zero backlash of direct drive technology, FullForce generates high-frequency vibrations for a new level of immersive effects. Feel the engine revs, and details of the road surface like never before. Only FullForce gives you the full experience of driving a race car.

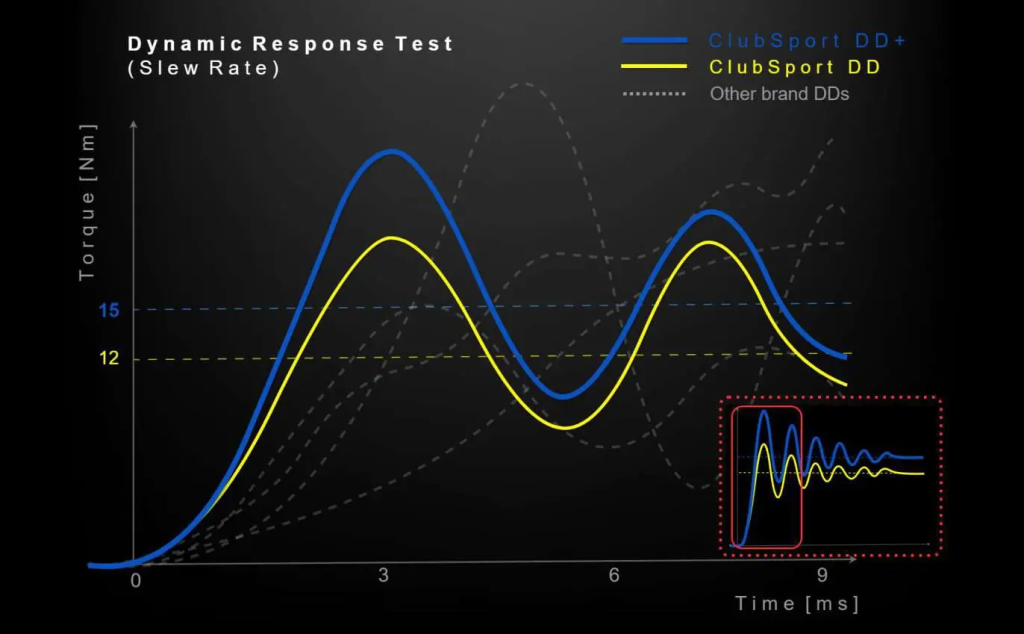

Precision response.
Class-leading slew rate performance combined with the powerful processor makes every motor reaction incredibly fast and dynamic, while remaining perfectly stable. This behaviour lends itself to traditional force feedback signals as well as enhanced FullForce signals (in supported games).
Features
Steering Wheel for Gran Turismo® DD Extreme:
- Designed in collaboration with Polyphony Digital
- Officially licensed for PlayStation®5 (compatibility is achieved via the Wheel Base)
- Premium vegan leather grip gives it the look and feel of a GT road car
- 300 mm diameter is suitable for many different vehicles

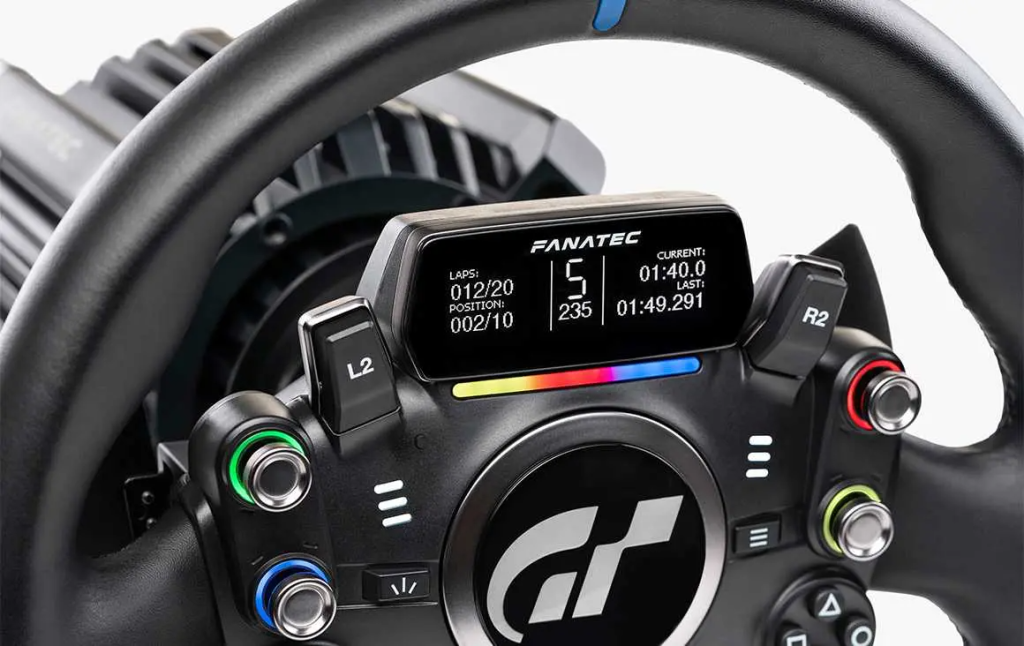

- 2.7” OLED display for Tuning Menu access and Intelligent Telemetry Mode (where supported)
- 19 RGB LEDs (programmable on PC with FanaLab)
- Diffused RGB RevLED strip
- RGB FlagLEDs
- RGB LED rings around the directional sticks
- 7-way FunkySwitch: left, right, up, and down directional inputs, push button, and rotary encoder functionality
- Four 5-way directional sticks designed for Gran Turismo®

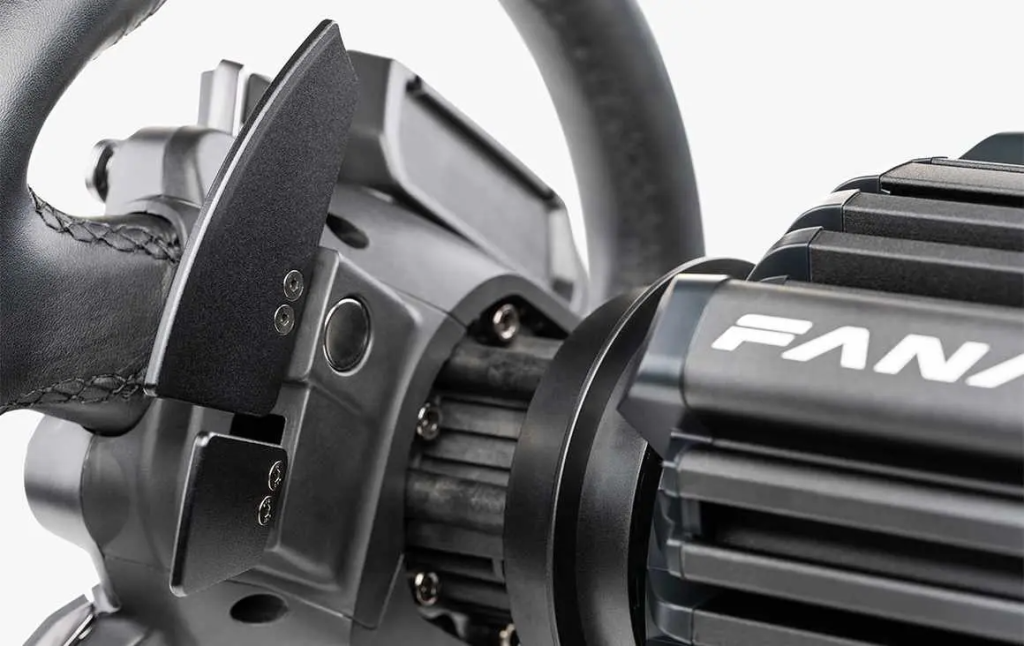

- Magnetic shifter paddles for superior tactile response
- 3 mm-thick, black anodised aluminium paddle plates
- Neodymium magnets
- Two analogue clutch paddles with four switchable modes:
- Clutch bite-point mode (standard/advanced)
- Clutch/handbrake mode
- Brake/throttle mode (allows driving without pedals connected)
- Mappable axis mode
- 11 buttons optimised for the PlayStation® interface
- Designed for QR2 from the ground up
- The Steering Wheel for Gran Turismo® DD Extreme was developed in parallel with the QR2 Lite Wheel-Side, allowing it to operate at the full 15 Nm torque performance from the ClubSport DD+ Wheel Base
- Precision fit means you feel all the detail of FullForce technology
ClubSport DD+ Wheel Base:
- Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
- Direct Drive servo motor
- Custom-designed in Germany for the ClubSport DD+ specifically for sim racing
- 15 Nm consistent torque
- Optimised skew angle on rotor magnets reduces cogging torque
- Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness
- FullForce technology
- New force feedback protocol developed for Fanatec Direct Drive
- Super low-latency detail effects through fine motor frequency control
- Passively cooled Wheel Base
- Most thermally stable Wheel Base in its class
- Consistent performance under the most extreme conditions
- QR2
- Wheel Base optimised for QR2 from the ground-up
- Electronics module integrated with shaft
- Diecast aluminium with CNC-machined finish
- Motorsport-derived quick release system
- QR1 downgrade possible (sold separately, coming soon)
- Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
- Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
- High-resolution (contactless) Hall-position-sensor
- Rotation: 2520 degrees (electronically limited, adjustable)
- Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)
- Compatible with entire Fanatec ecosystem (see Compatibility section for details)
- T-nut rail system on sides and bottom for easily adjustable hard-mounting
- Ports:
- Power supply
- USB-C to PC / console
- Shifter 1
- Shifter 2 (Sequential only)
- Pedals
- Handbrake
- CAN (for future Fanatec peripherals)
- Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
Compatibility
The ClubSport DD+ Wheel Base is compatible with:
- All Fanatec Steering Wheels (with QR2)
- All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
- ClubSport Shifter (all versions)
- ClubSport Handbrake
- All Fanatec Cockpits
- ClubSport DD Table Clamp
- ClubSport Table Clamp V2
- Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)
Note: ClubSport Static Shifter Paddles are not supported.The Steering Wheel for Gran Turismo® DD Extreme is only compatible with the ClubSport DD / ClubSport DD+ Wheel Bases at this time. Compatibility with other Wheel Bases is planned for a future firmware update.
Platforms
- This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
- This product is compatible with PC on all major racing games.
- Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.
Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.
Tech Specs
Product Series
GT
Weight Unit of Measurement
KG
Platform
PC, PlayStation
Weight
11.42
What's Included
- Steering Wheel for Gran Turismo® DD Extreme
- QR2 Lite Wheel-Side (preinstalled)
- ClubSport DD+ Wheel Base
- QR2 Base-Side (Type-F) (preinstalled)
- Power Supply (regional)
- 4x T-nuts for rail mount system
- USB cable (Type-C to Type-A)
- Quick Guide
Special Notes
- Not suitable for children. The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
- The Steering Wheel for Gran Turismo DD Extreme supports 15 Nm torque with the preinstalled QR2 Lite Wheel-Side.
- The Gran Turismo® DD Extreme package supports all modern Fanatec pedals (sold separately).
Additional information
| Weight | 11.42 kg |
|---|---|
| Dimensions | 46.5 × 43 × 39 cm |
