Aiologs H-pattern Shifter

Brands:
Availability: In Stock

Included in the product set:
Aiologs H-Patter Shifter, Knob 80×45, Rod M+L+S, Mounting plate, USB Cable,
Adjusting key.

Mounting options:
-Plate: Mounting to aluminum profile or pre-drilled rig plate
-Clamp: Universal mounting to any flat surface 0-30mm width.
-Bracket: Most rigid solution for aluminum profile rigs (Recommended with Rod «L»)

$949.99  CAD

Category: Tags: , SKU: N/A Brands:

Description

In-Stock. Same-Day Shipping & Pickup*

Over 4 years of development, Aiologs has built 6 prototypes, tried 10 conceptual mechanical principles in different parts of the device and created a unique solution with 4 ways to adjust your shifting experience.

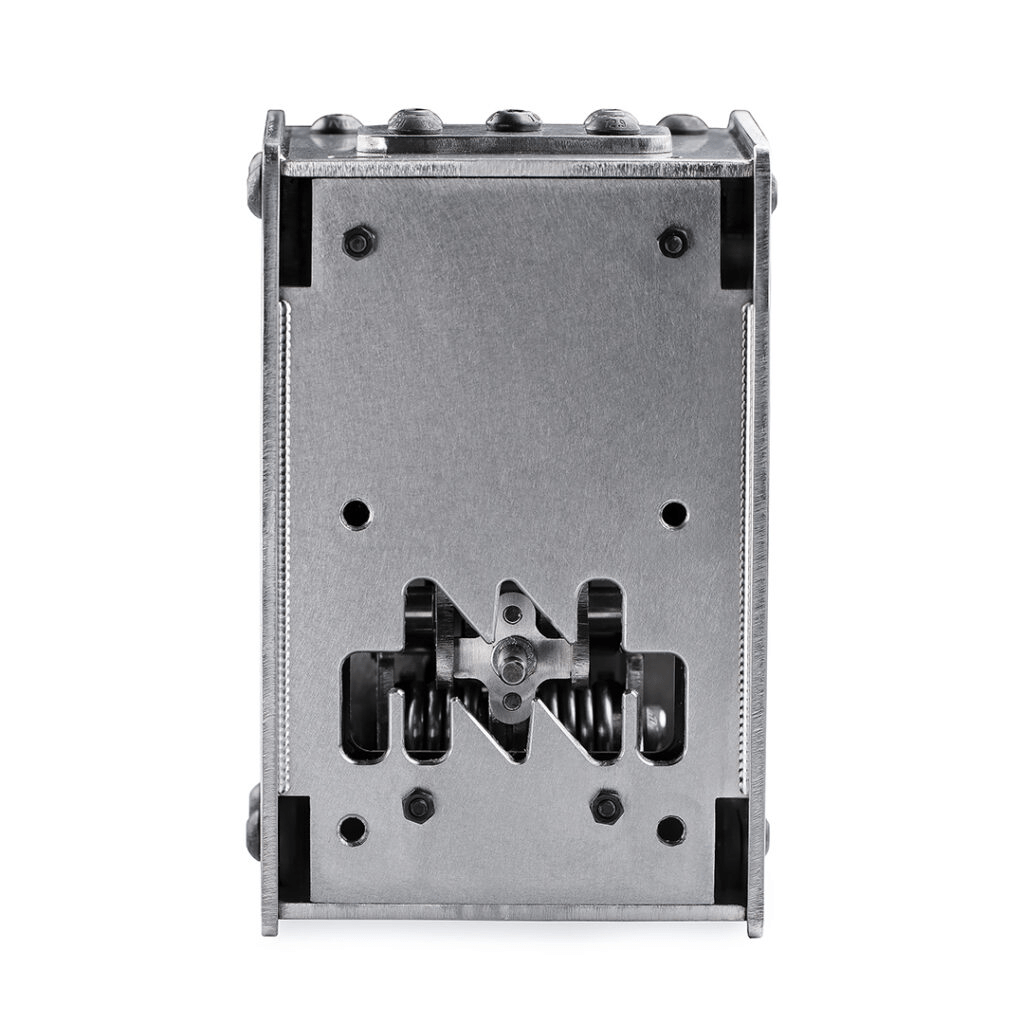

The Y-axis (Forward – Backward) and X-axis (Left – Right) springs are pushed by mechanisms that adjust spring compression to create unique tension chart.
The Y-axis has 2 separate modulators to create at least 3 tension types of shifting (Y1, Y2, Y1+Y2)
Shifting to Reverse and 7th speed is performed under additional pressure.

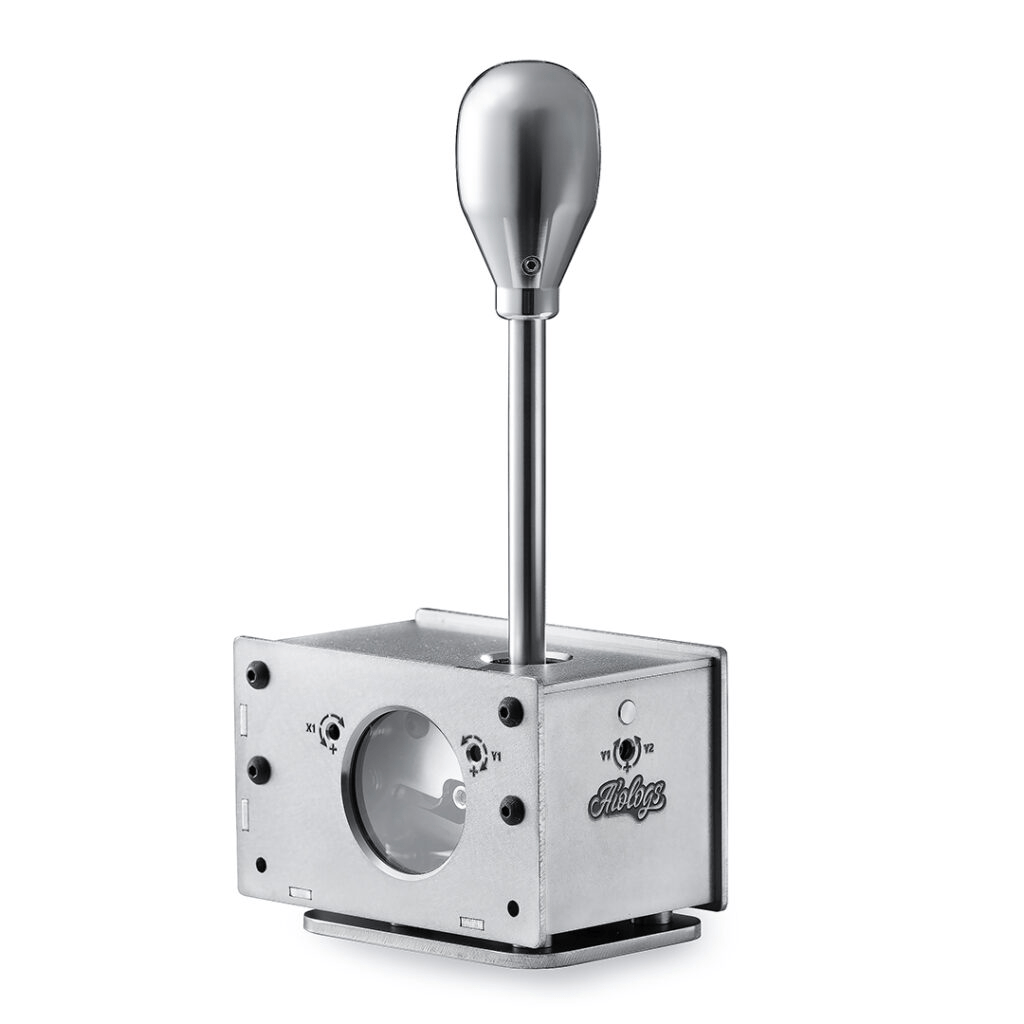

Adjustments

– Y-axis tension
– X-axis tension
– Y-axis progression types: Sharp, Smooth
– Knob installation height: 180–400mm

Features

– Full steel mechanical core allowed us to make a compact and powerful device.
– With dimensions of 86x86x136mm, it is the most compact solution between hight-level H-Shifters on the market.

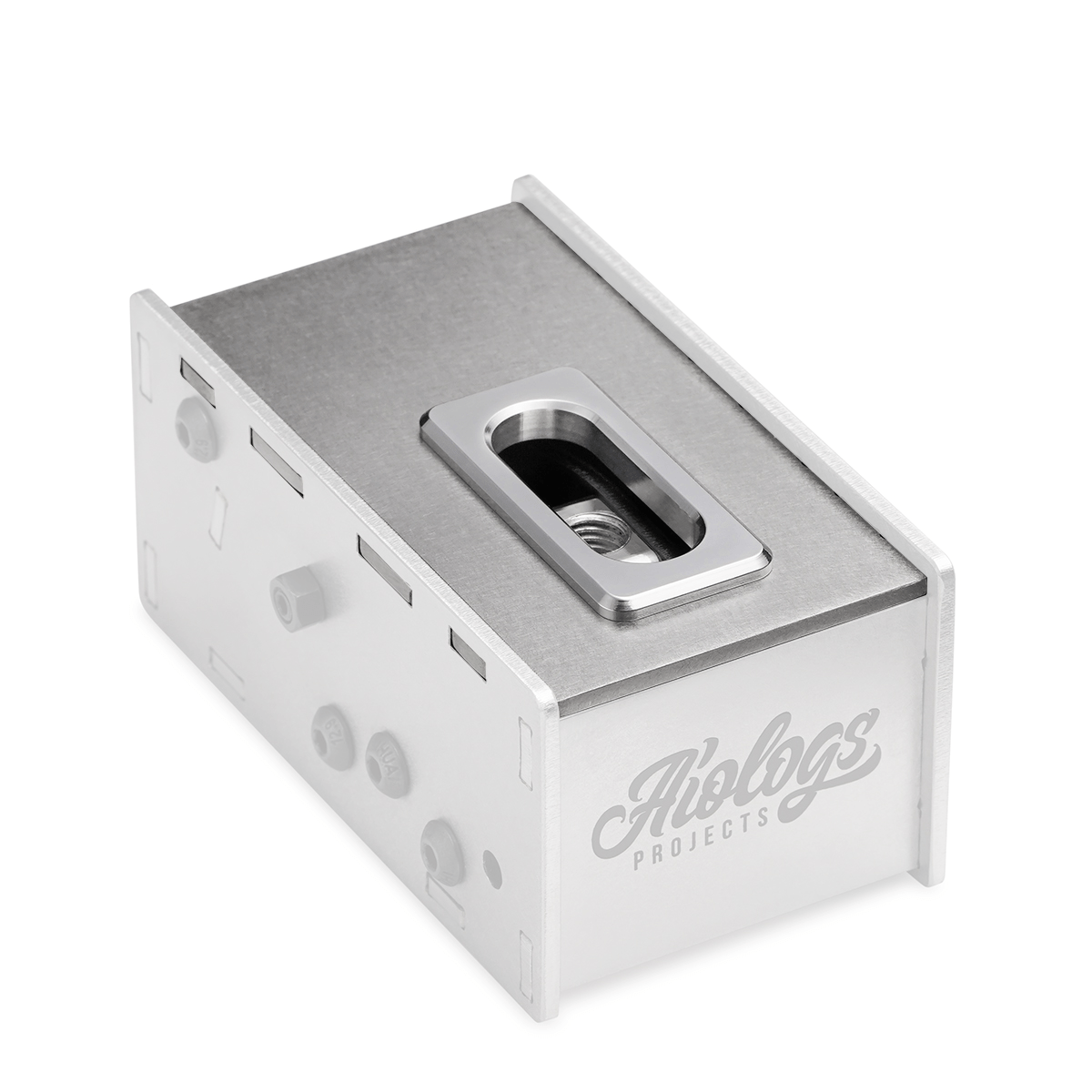

– Stainless steel box contains round tempered glasses and adjustable RGB lightning.
– Shifts are precisely detected by magnetic contactless sensors.

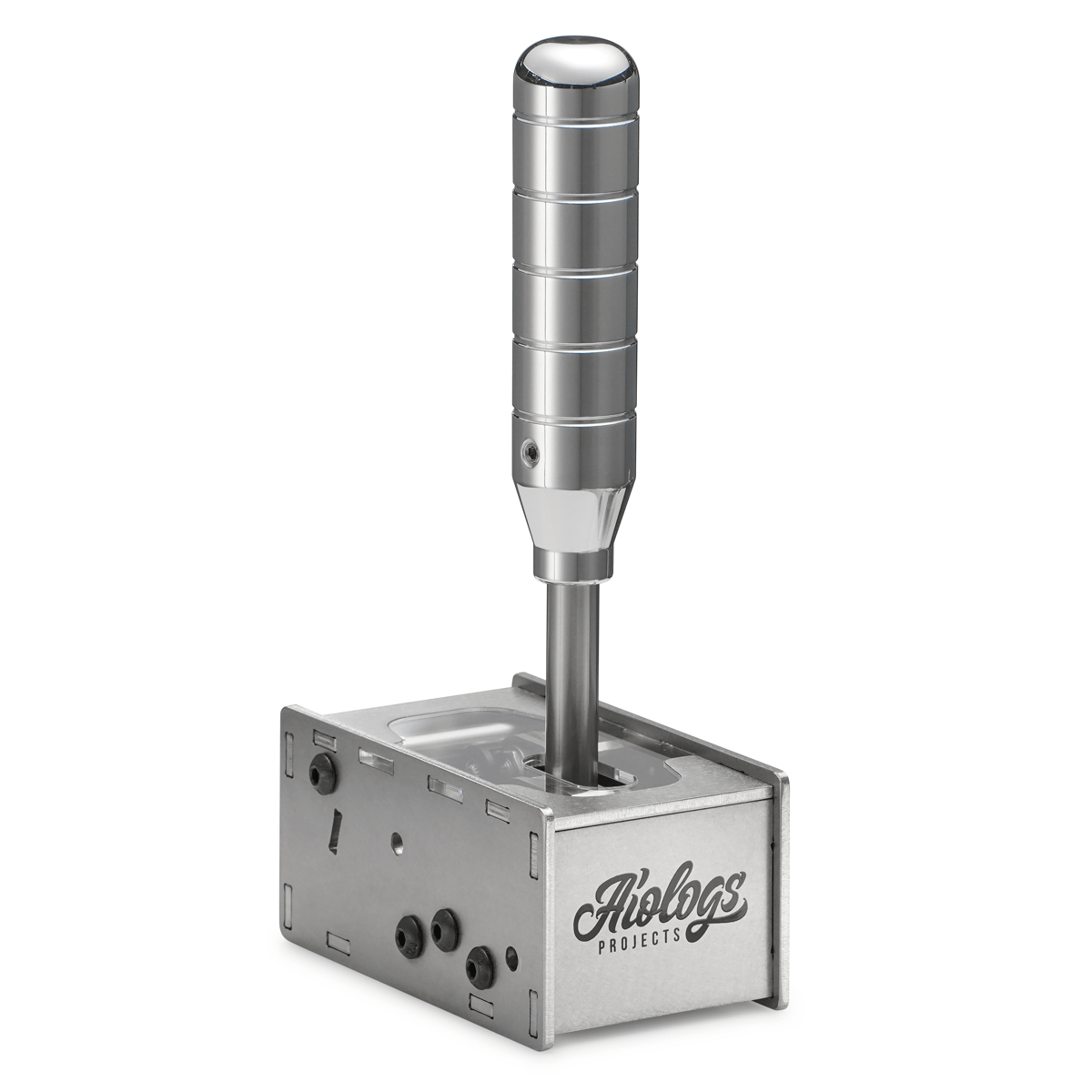

– The polished aluminum handle comes with 3 stainless steel rods of varying lengths by default.
– A variety of mounting options make it easy to attach the device to any rig or desktop.
– Device (HID Joystick) is working on Windows PCs via USB and is compatible with drive, race, truck and etc simulators.

Additional information

Weight N/A
Dimensions N/A
Mounting Options

Plate, Plate + Bracket, Plate + Bracket + Clamp, Plate + Clamp
